ArcFlash Essentials Features

One-Line Creator

  • Create detailed electrical one-lines
  • Smart one-lines highlight problem areas
  • ANSI-standard/IEC symbols
  • Windows-compliant interface
  • User-defined colors, grid, text, fonts, and more
  • Create any type of power system
  • Intuitive toolbar with mouse-click simplicity
  • Drag and drop devices from extensive equipment palette
  • Panel schedules and motor control centers
  • Model, analyze and isolate potential hazardous conditions

Arc Flash Calculator

  • Calculates short-circuit currents
  • Flags over-dutied equipment
  • Determines arc duration based on PDC settings noted in a physical survey
  • Instant answers from proprietary algorithms
  • Detailed calculations and reports, compliant with NFPA 70E and OSHA
  • User-defined working distances, boundary parameters, and arcing current brackets

Arc Flash Labels | Create, Print, Store

  • Automatically prints ANSI Z535-compliant arc flash labels
  • Fully customizable label templates—any language, any graphic
  • Shows NFPA 70E flash boundaries, incident energies, PPE requirements, approach boundaries, and more
  • Direct output on high-quality UV-resistant vinyl labels to Brady and Dura-Label printers
  • Direct output to SafetyCal laser print labels
  • Multicolor printing

Energized Work Permits | Create, Print, Store

  • Create and print NFPA 70E-compliant energized work permits with built-in templates
  • Includes calculated flash hazard boundaries, incident energy, PPE requirements, shock hazard voltage, approach boundaries (limited, restricted, and prohibited)
  • NFPA 70E-compliant documentation in auto-generated Word documents
  • Link work permits to the right equipment and store on the one-line

User-Definable Work Permit Library

  • Extensive customizable library for hundreds of specific work tasks
  • Detailed job descriptions and safety procedures stored for each task
  • HRC substantiation
  • Determine voltage-rated gloves and tools

Hyperlink Documents to the One-Line | One Place, One Click

  • Store all important documents right on the one-line
  • Convenient mouse-click access for all plant personnel
  • Maintenance records, instruction manuals, lockout/tagout procedures, pictures, and more
  • Comply with regulations easily and quickly

Built-In Prompts | Identify, Review, Prepare

  • Identify potential hazards
  • Check job plans
  • Review steps to protect workers
  • Prepare for emergencies

ArcFlash Essentials also includes SmartBreaker™ and SmartDuty™.

ArcFlash Essentials Example

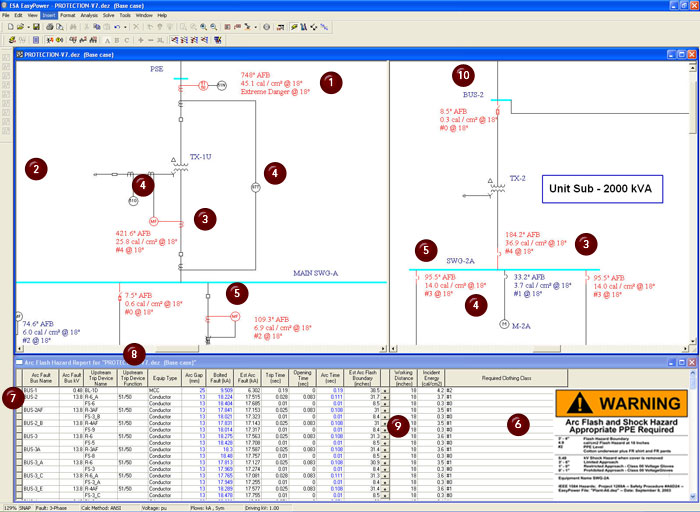

  1. Includes the latest calculation standards for IEEE-1584 and NFPA 70E.
  2. Model ANSI short-circuit calculations using momentary, interrupting, or 30-cycle currents for unmatched flexibility.
  3. Automatically and correctly selects the fastest protective trip times, no matter how many protective devices.
  4. Model differential, partial differential, arc flash sensing, zone interlocking, and other instantaneous sensing devices.
  5. Display of bus-based or detailed arc flash values.
  6. Direct output of ANSI Z535-compliant labels from spreadsheet to Brady and Dura-Label printers on UV resistant vinyl labels.
  7. Detailed spreadsheet provides at-a-glance calculations: NFPA 70E flash boundaries, incident energies, PPE requirements, approach boundaries, and more.
  8. Reports can include detailed let-through energy for all devices, worst-case bus or line-side values.
  9. Reporting in English or metric units.
  10. Click on any equipment to create NFPA 70E-compliant energized work permits with built-in templates; they automatically link to the selected equipment.

Try Before You Buy

Download a free evaluation copy today. It’s the smartest, easiest way to decide!

Download Demo
